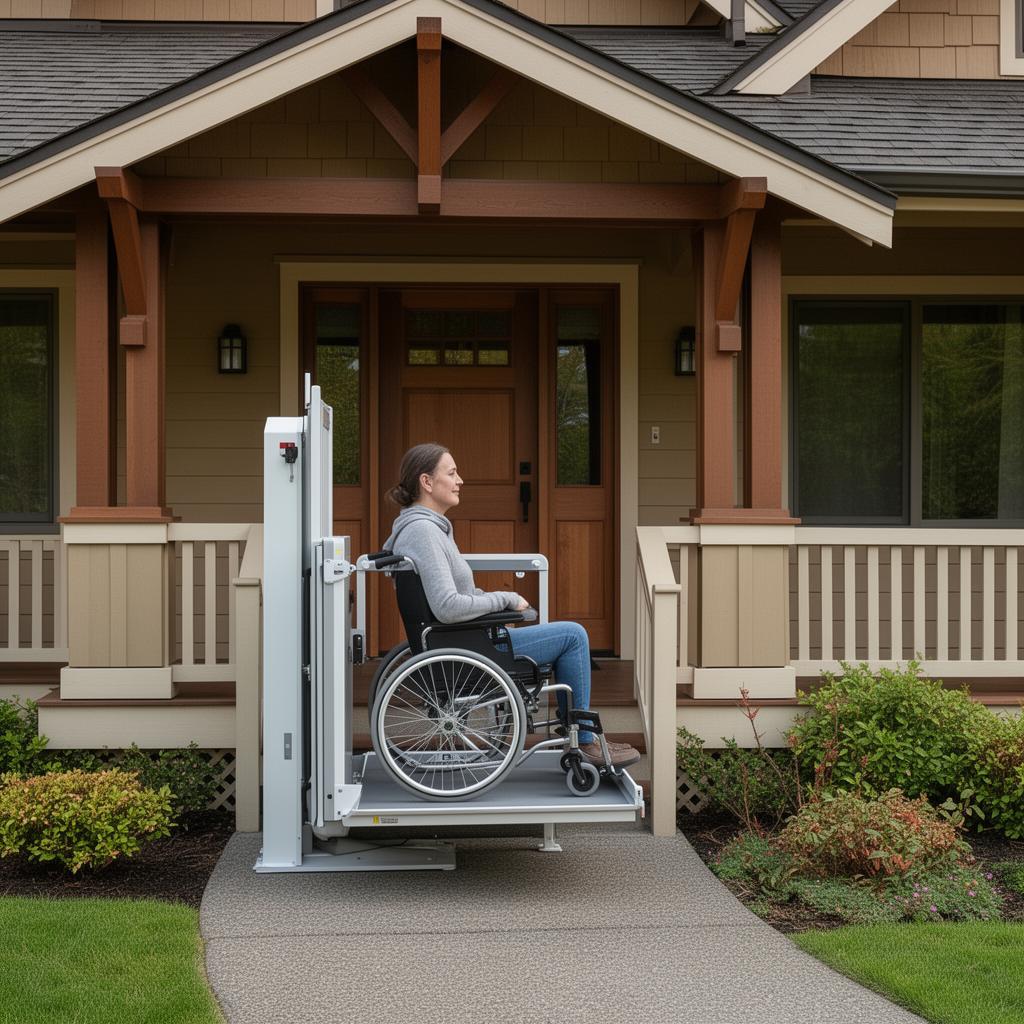

Savaria V-1504 Vertical Platform Lift
Heavy-Duty Wheelchair Lift for Portland Homes & Businesses | Up to 1,000 lb Capacity
Weight Capacity
Up to 1,000 lbs
Travel Height
Up to 14 feet
Platform Size
32"x54" to 42"x60"
ADA Compliant
Yes
Warranty
Limited lifetime
Commercial-Grade Vertical Wheelchair Lift for Residential & Commercial Use
The Savaria V-1504 Vertical Platform Lift delivers commercial-grade performance with residential flexibility—offering wheelchair and mobility device users unparalleled access between floor levels in Portland homes and businesses. With its robust 1,000 lb capacity, customizable platform sizes, and limited lifetime warranty on motor and drive components, the V-1504 represents Savaria's premium engineering. This unenclosed platform lift is ideal for both indoor and outdoor applications where full enclosures aren't required or desired.
As a VA-approved contractor, Bearson Enterprises installs Savaria V-1504 platform lifts for veterans through VA SAH/SHA grant programs—which can provide up to $121,812 for major home modifications. Serving Portland and SW Washington since 1978, our licensed general contractors handle complete installations including structural assessments, permits, and building code compliance (Oregon CCB #16541, Washington DAVEBBC962ND).
Whether you need heavy-duty capacity for power wheelchairs, a commercial-grade solution for your business, or simply want Savaria's legendary reliability with lifetime warranty protection, the V-1504 delivers exceptional performance for decades of dependable service.
Up to 1,000 lb Capacity
Industry-leading capacity for heavy power wheelchairs and multiple occupants
Fully Wheelchair Accessible
Direct access for wheelchairs, scooters, and mobility devices (no transfer)
Limited Lifetime Warranty
Motor and drive system covered for life (industry's best)
Up to 14' Travel
Serves multiple floor levels in residential and commercial applications
Commercial Grade
Built to commercial standards for durability and daily use
Canadian Engineering
Manufactured by Savaria in Quebec, Canada (over 40 years accessibility expertise)
Savaria V-1504 Vertical Platform Lift Specifications
| Model | Savaria V-1504 (Unenclosed Vertical Platform Lift) |
| Weight Capacity | 750 lbs (standard); 1,000 lbs (optional upgrade) |
| Travel Height | Up to 14 feet (multi-story capability) |
| Platform Size Options | 32" x 54" (standard); 36" x 48"; 40" x 54"; 42" x 60" (custom sizes available) |
| Platform Type | Open platform with non-slip aluminum surface |
| Lift Type | Unenclosed vertical platform lift (VPL) |
| Drive System | Direct drive screw system (low maintenance) |
| Power | 110V or 220V AC (model dependent) |
| Speed | 12 feet per minute (smooth, controlled) |
| Door/Gate Options | Manual swing gates (standard); powered gates (optional) |
| Enclosure | Unenclosed (open tower design with safety gates) |
| Indoor/Outdoor | Both models available (outdoor is weather-resistant) |
| Weather Rating | Outdoor models: Powder-coated galvanized steel (corrosion-resistant) |
| Temperature Range | Outdoor: -4°F to 122°F; Indoor: 40°F to 100°F |
| Safety Features | Constant pressure controls, interlocked gates, emergency stop, obstruction sensors, slack cable safety |
| Control Type | Constant pressure (hold-to-run) with call stations at each landing |
| Installation | Self-supporting tower or building-attached configuration |
| Tower Type | Galvanized steel with powder-coat finish |
| Color Options | Multiple powder-coat colors for tower and platform |
| Warranty | Limited lifetime warranty (motor/drive); 5-year parts; 2-year labor |
| Certifications | ASME A18.1 Certified; CSA Certified; ADA Compliant |
| Made In | Laval, Quebec, Canada |
Why Savaria V-1504 is Perfect for Portland & SW Washington
Residential Applications
Heavy-Duty Home Use
- Users with heavy power wheelchairs (400-600 lbs)
- Multiple wheelchair users in household
- Bariatric wheelchair accommodations
- Homes requiring commercial-grade reliability
Split-Level & Multi-Story Homes
- Access between different floor levels (up to 14 feet)
- Basement to main floor access
- Main floor to upper story access
- Garage to living area transitions
Outdoor/Porch Access
- Raised entryways and porches
- Multi-level deck systems
- Hillside property elevation changes
- Outdoor spaces requiring heavy-duty capacity
Commercial Applications
Business Accessibility (ADA Compliance)
- Retail stores with split-level floors
- Restaurants with raised dining areas
- Professional offices with floor level changes
- Churches, community centers, public buildings
Healthcare Facilities
- Medical offices and clinics
- Physical therapy centers
- Assisted living facilities
- Adult day care centers
Educational & Municipal
- Schools with elevation changes
- Libraries and public buildings
- Municipal offices
- Community recreation centers
Heavy-Duty for PNW Terrain
Handles steep Portland hillside properties and elevation changes
Code Compliant
Meets Oregon/Washington building codes and ADA requirements
Commercial Standards
Built for daily use in businesses and high-traffic residential settings
Weather-Resistant Outdoor
Withstands Pacific NW rain, snow, and temperature extremes
Lifetime Warranty
Long-term reliability for Portland's aging-in-place homeowners
Local Experience: The Savaria V-1504 is our go-to recommendation for Portland customers needing heavy-duty capacity or commercial-grade reliability. We've installed V-1504 lifts in everything from West Hills hillside homes (outdoor porch access) to downtown Portland businesses (ADA compliance). The 1,000 lb capacity handles the heaviest power wheelchairs, and the lifetime warranty on motor/drive provides unmatched peace of mind. Over 75 V-1504 installations throughout Portland Metro area.
Ideal For:
Heavy Power Wheelchair Users requiring 1,000 lb capacity
Multiple Wheelchair Users in residential or commercial settings
Veterans with service-connected disabilities (VA SAH/SHA grants up to $121,812)
Business Owners needing ADA-compliant vertical access
Homeowners wanting commercial-grade reliability and lifetime warranty
Bariatric Users requiring heavy-duty capacity beyond standard lifts
Unenclosed V-1504 vs. Enclosed Configuration Options
Unenclosed Platform Lift (V-1504)
Features:
- Open tower design with safety gates only
- No walls or ceiling enclosure
- Self-supporting galvanized steel tower
- Manual or powered swing gates at landings
- Platform gate prevents rolling off
Advantages:
- Lower Cost: No enclosure walls/ceiling reduces material and installation costs
- Open Feel: Less claustrophobic; better for users with anxiety
- Easier Installation: Simpler structure; faster installation timeline
- Flexibility: Works for both indoor and outdoor applications
- Maintenance Access: Easier inspection and service access
Best For:
- Outdoor applications (porches, decks, exterior entries)
- Garages and utility areas
- Open interior spaces where enclosure isn't required
- Budget-conscious customers seeking heavy-duty performance
Enclosed Configuration (Savaria Multilift)
Features:
- Full walls and ceiling enclosure
- Automatic sliding or swing doors
- Climate-controlled interior
- Finished panels match home décor
Best For:
- Interior floor-to-floor access in finished living spaces
- Climates requiring weather protection
- Applications where aesthetic enclosure is desired
- Commercial settings requiring enclosed lift cars
Which Do I Need?
- 🌤️ V-1504 Unenclosed: Outdoor use, garages, utility areas, or open spaces
- 🏠 Multilift Enclosed: Interior finished spaces, climate-controlled environments
❓ Not sure? Schedule a free consultation: (503) 233-6422
Comprehensive Safety System for Vertical Platform Lifts
Constant Pressure Controls
User must continuously hold button (prevents unintended movement)
Interlocked Safety Gates
Gates at all landings must be closed for operation
Platform Safety Gate
Self-closing gate on platform prevents wheelchair roll-off
Dual Obstruction Sensors
Infrared sensors on platform and underside detect objects
Emergency Stop Buttons
Red stop buttons accessible on platform and at all landings
Slack Cable Safety
Automatically stops lift if drive cable loses tension
Overload Protection
Prevents operation if weight exceeds 1,000 lb capacity
Emergency Lowering
Manual hand-crank lowers platform during power failure
Non-Slip Platform
Textured aluminum surface prevents wheelchair slippage
Audible/Visual Alarms
Alerts bystanders during operation
Additional Heavy-Duty Safety Features:
- Reinforced Platform: Commercial-grade aluminum construction (1,000 lb rated)
- Redundant Safety Systems: Multiple fail-safes throughout drive mechanism
- Weather Protection (Outdoor): Corrosion-resistant components for Pacific NW conditions
Safety Certifications:
Professional Installation by Licensed General Contractors
Free Site Assessment
On-site structural evaluation, elevation measurements, load calculations, detailed proposal
Engineering & Design
Structural engineering, foundation design, tower configuration, building code review
Permit Processing
Building permits, structural permits, ADA compliance documentation (Bearson handles all—Oregon CCB #16541)
Site Preparation
Foundation work (concrete pad or structural reinforcement)
Manufacturing
Custom V-1504 fabricated by Savaria to exact specifications
Installation
2-4 days; tower assembly, platform installation, electrical connection, gate installation, testing
Inspection & Training
Final building inspector approval, comprehensive user training, warranty registration
What's Included:
Important Note: V-1504 installations require structural engineering and licensed general contractor expertise. Total timeline is 12-16 weeks from assessment to completion. Bearson coordinates all structural, electrical, and permitting requirements.
How to Fund Your Vertical Platform Lift
VA Funding (For Eligible Veterans)
- 🎖️VA SAH Grant:
Up to $121,812 (FY 2025) for veterans with specific service-connected disabilities. V-1504 platform lifts qualify as major home modifications.
- 🏠VA SHA Grant:
Up to $24,405 (FY 2025) for veterans with certain service-connected disabilities.
- 🏥VA HISA Grant:
Up to $6,800 may cover platform lifts for eligible veterans (service-connected) or $2,000 (non-service-connected 50%+ disability).
Other Funding Options
- 🩺Oregon Medicaid K Plan:
May cover platform lifts for eligible individuals—Bearson assists with eligibility verification
- 💳Tax Deductions:
Physician-prescribed accessibility equipment may qualify as medical expense deduction
- 🏦Financing Options:
Home equity line of credit, personal loan, Medicaid waiver programs
- 🏢Business Tax Credits:
ADA-compliant equipment may qualify for tax deductions or credits (consult tax advisor)
Note: Traditional Medicare does NOT cover platform lifts. Some Medicare Advantage plans may offer benefits—check your specific plan.
The Savaria V-1504 is a premium investment with lifetime warranty protection. VA funding can cover the majority or full cost for eligible veterans. Get a free structural assessment and customized quote with no pressure, no obligation.
Call (503) 233-6422Savaria V-1504 vs. Bruno Platform Lift
| Feature | Savaria V-1504 | Bruno Platform Lift |
|---|---|---|
| Weight Capacity | 750-1,000 lbs | 750 lbs |
| Warranty | Limited lifetime (motor/drive) | 5 years |
| Platform Size Options | 32"x54" to 42"x60" (4+ options) | 36"x48" to 40"x54" |
| Drive System | Direct drive screw | Electro-hydraulic or screw |
| Speed | 12 ft/min | 10-15 ft/min |
| Travel Height | Up to 14 feet | Up to 14 feet |
| Tower Type | Galvanized steel (commercial) | Powder-coated steel |
| Enclosure | Unenclosed (open tower) | Both enclosed/unenclosed |
| Made In | Quebec, Canada | Wisconsin, USA |
| Best For | Heavy-duty capacity, lifetime warranty, commercial-grade | American-made preference, enclosed options |
🏆 Savaria V-1504: You need 1,000 lb capacity, lifetime warranty, or commercial-grade reliability
🇺🇸 Bruno Platform Lift: You prefer American-made products or enclosed cab configurations
❓ Not sure? Schedule a free consultation: (503) 233-6422
Other Vertical Mobility Solutions by Bearson
Frequently Asked Questions: Savaria V-1504 Platform Lift
What Our Portland Customers Say
"My husband's power wheelchair weighs 450 lbs—most lifts couldn't handle it. The Savaria V-1504 with 1,000 lb capacity was the only solution that worked. Bearson installed it outdoors to access our raised porch, and it's been flawless for three years through every Portland rainstorm. The lifetime warranty gives us peace of mind."
"We installed a V-1504 in our physical therapy clinic to meet ADA requirements. Bearson handled all the permitting and structural work professionally. It's been in daily commercial use for two years with zero issues. The heavy-duty construction is perfect for our high-traffic setting."
"As a disabled veteran, the VA covered the full cost through the SAH grant. The V-1504 gives me access to my garage and basement—something I thought I'd never have again. Bearson coordinated everything with the VA. The lifetime warranty on the motor means I'll never worry about replacement costs."
Why Buy from Bearson Enterprises?
Serving Portland Metro & Southwest Washington
Portland Metro
Portland, Beaverton, Hillsboro, Gresham, Tigard, Tualatin, Lake Oswego, West Linn, Oregon City, Milwaukie
Oregon
Salem, Newberg, McMinnville, Forest Grove, Woodburn, Canby, Sandy, Estacada (up to 120 miles from Portland)
SW Washington
Vancouver, Camas, Washougal, Battle Ground, Ridgefield, La Center
Not sure if we serve your area? Call (503) 233-6422
Ready to Get Started?
Platform lifts require structural engineering and general contractor expertise. We'll visit your home or business, conduct a complete structural assessment, evaluate options, and provide a detailed proposal—all at no cost, no obligation. That's the Bearson promise.
